PX4 SITL Simulation

PX4

PX4 is an OSS project which develops flight controllers and firmware for UAVs.

Setup Environment

The following instructions are based on Development Environment on Linux - PX4 Developer Guide. If you have any problems, please refer the instruction on the official website.

Setup

The user must be the member of dialout group to communicate serial devices. To make user the member of dialout, run the following command.

sudo usermod -a -G dialout $USER

After running the command, log out from the current user and log in again to enable group setting.

Installation

You can setup the environment for PX4 simulation with the script provided by the official repo. Firstly, download ubuntu_sim_ros_gazebo.sh.

You can’t install the ROS package with repository key in downloaded script. To install ROS package, fix the following line in ubuntu_sim_ros_gazebo.sh.

sudo apt-key adv --keyserver hkp://ha.pool.sks-keyservers.net:80 --recv-key 421C365BD9FF1F717815A3895523BAEEB01FA116

The following command fixes the key for the repository.

sudo apt-key adv --keyserver 'hkp://ha.pool.sks-keyservers.net:80' --recv-key C1CF6E31E6BADE8868B172B4F42ED6FBAB17C654

Run the following command in the directory which contains ubuntu_sim_ros_gazebo.sh.

source ubuntu_sim_ros_gazebo.sh

Packages are automatically installed with the command. ROS will be installed if ROS is not installed in your system. It will take a while to install ROS.

Update Gazebo installed by PX4 installation script. The following command is based on Install Gazebo using Ubuntu packages. Firstly, remove installed Gazebo.

sudo apt purge gazebo* libgazebo*

Then add setting to accept packages from packages.osrfoundation.org.

sudo sh -c 'echo "deb http://packages.osrfoundation.org/gazebo/ubuntu-stable `lsb_release -cs` main" > /etc/apt/sources.list.d/gazebo-stable.list'

Then add repository key.

wget https://packages.osrfoundation.org/gazebo.key -O - | sudo apt-key add -

Finally, update Gazebo7.

sudo apt update
sudo apt install gazebo7
sudo apt install libgazebo7-dev

After running the script, PX4 firmware is downloaded into ~/src/Firmware.

Simulation using Gazebo

To run Gazebo simulation, run the following command in ~/src/Firmware.

make posix_sitl_default gazebo

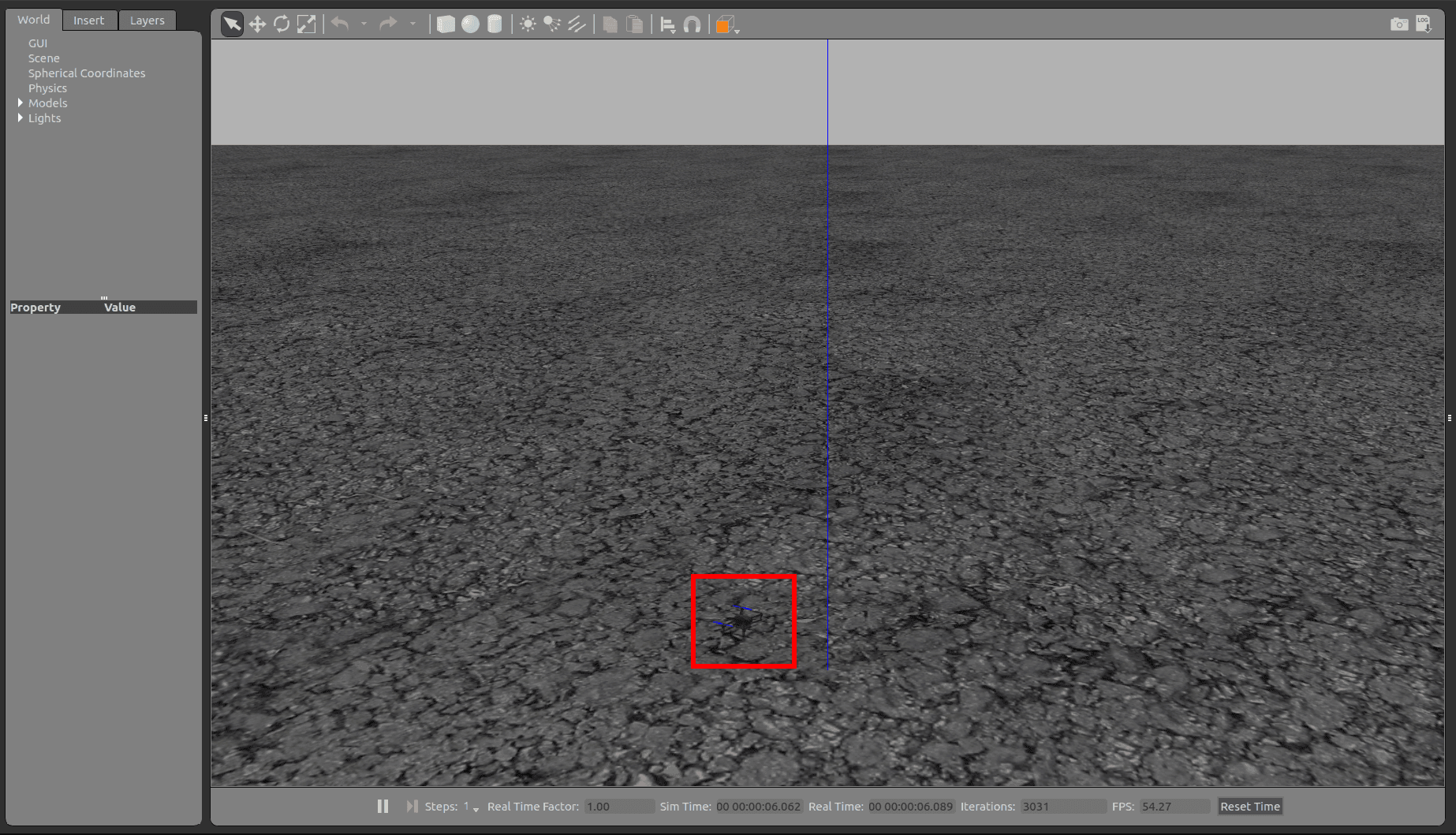

It takes a while to start Gazebo if it is first time to run. The window like the following image appears. UAV is in the red rectangle.

../_images/gazebosim1.png

There are other airframes available for simulation. You can find available airframes here.

Run the following command in the terminal of SITL simulator to get UAV take off.

commander takeoff
../_images/commander.png

You can try the other commands. For the list of available commands, run help command.

Simulation with Gazebo and ROS

mavros

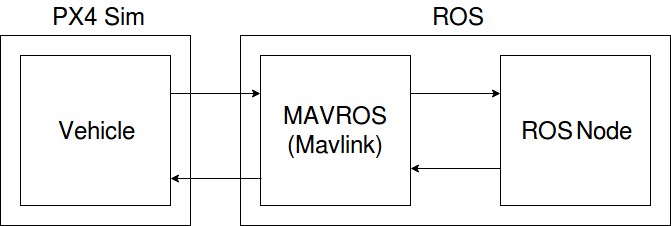

We will use mavros to exchange messages between ROS nodes and vehicles in the simulator.

The vehicles in the simulator follows Mavlink protocol to communicate. MAVROS is the wrapper package of Mavlink protocol. You can read sensor measurements and send controll messages like take off, landing, etc. For the list of available services and topics, see here.

../_images/gazebo_mavros.png

Communicate with vehicle via mavros

Let’s communicate with the vehicle in the simulator using mavros. Run the simulator by following the instruction described in Simulation using Gazebo .

After starting up the simulator, run mavros by the following command. See Appendix: fcu_url argument of mavros for the details of fcu_url parameter.

roslaunch mavros px4.launch fcu_url:="udp://:14540@127.0.0.1:14557"

After starting up mavros, run the following command in the other terminal.

rostopic list

You can see topics like /mavros/... when mavros communicates successfully.

Let’s use services which mavros provides. You can start motors on the UAV by sending “value: true” message to /mavros/cmd/arming service.

rosservice call /mavros/cmd/arming "value: true"

You can try other services such as taking off, landing, etc. Tapping TAB key twise after entering /mavros gives you the list of available services. This feature is called “Tab Completion”.

Using tab completion after entering service name, you can get the template of required ROS message of the service. You need to change the values in the template of message, because they are set to default value. After starting up the motors by the command above, run the following command to get UAV take off to 5m from the ground.

rosservice call /mavros/cmd/takeoff "{min_pitch: 0.0, yaw: 0.0, latitude: 47.3977506, longitude: 8.5456074, altitude: 5}"
../_images/service_takeoff.png

The command get UAV to the point of latitude 47.3977506, longitude 8.5456074, and attitude 5.

Launch simulator with ROS wrapper

You can run PX4 SITL simulator by roslaunch command. The following launch file will run the simulator.

posix_sitl.launch

Launch SITL Simulator

mavros_posix_sitl.launch

Launch SITL and Mavros

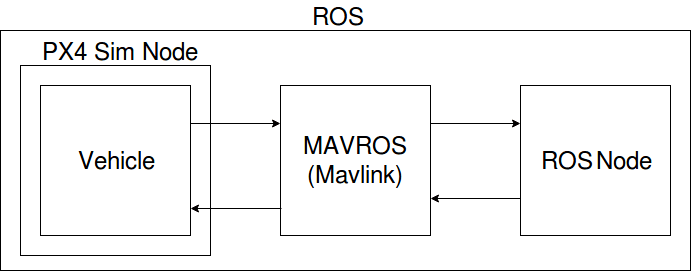

Mavros, ROS node, and simulator communicate like the following in this case.

../_images/rossim.png

Setup

You need to set the environment variable to run simulator using these launch files. Firstly, navigate to ~/src/Firmware.

cd ~/src/Firmware

If you didn’t do the procedure in Simulation using Gazebo , run the following command. The following command generates files required to run simulator. You need to run the following command in ~/src/Firmware.

make posix_sitl_default gazebo

Then, run the scripts to configure settings. You don’t need to run the first line if ROS environment is already prepared.

source ~/catkin_ws/devel/setup.bash
source Tools/setup_gazebo.bash $(pwd) $(pwd)/build/posix_sitl_default

Then, set environment variables.

export ROS_PACKAGE_PATH=$ROS_PACKAGE_PATH:$(pwd)
export ROS_PACKAGE_PATH=$ROS_PACKAGE_PATH:$(pwd)/Tools/sitl_gazebo

You need to run the commands everytime you run the simulator. Instead of running the command, you can write the following commands to ~/.bashrc to run commands automatically.

source $HOME/src/Firmware/Tools/setup_gazebo.bash $HOME/src/Firmware $HOME/src/Firmware/build/posix_sitl_default > /dev/null
export ROS_PACKAGE_PATH=$ROS_PACKAGE_PATH:$HOME/src/Firmware
export ROS_PACKAGE_PATH=$ROS_PACKAGE_PATH:$HOME/src/Firmware/Tools/sitl_gazebo

Run simulator

The following command activates simulator

roslaunch px4 posix_sitl.launch

Use mavros_posix_sitl.launch to start mavros with simulator.

roslaunch px4 mavros_posix_sitl.launch

By the following command, you can use airframes listed in Gazebo Simulation - PX4 Developer Guide.

roslaunch px4 mavros_posix_sitl.launch vehicle:=vehicle_name

Appendix: fcu_url argument of mavros

roslaunch command

In ROS, you can set values to variables in launch file in the following way.

roslaunch package file.launch arg:=value

The following is the content of px4.launch. You can set the value of fcu_url with the command like roslaunch mavros px4.launch fcu_url:="udp://:14540@127.0.0.1:14557".

<launch>
<!-- vim: set ft=xml noet : -->
<!-- example launch script for PX4 based FCU's -->

<arg name="fcu_url" default="/dev/ttyACM0:57600" />
<arg name="gcs_url" default="" />
<arg name="tgt_system" default="1" />
<arg name="tgt_component" default="1" />
<arg name="log_output" default="screen" />
<arg name="fcu_protocol" default="v2.0" />
<arg name="respawn_mavros" default="false" />

<include file="$(find mavros)/launch/node.launch">
    <arg name="pluginlists_yaml" value="$(find mavros)/launch/px4_pluginlists.yaml" />
    <arg name="config_yaml" value="$(find mavros)/launch/px4_config.yaml" />

    <arg name="fcu_url" value="$(arg fcu_url)" />
    <arg name="gcs_url" value="$(arg gcs_url)" />
    <arg name="tgt_system" value="$(arg tgt_system)" />
    <arg name="tgt_component" value="$(arg tgt_component)" />
    <arg name="log_output" value="$(arg log_output)" />
    <arg name="fcu_protocol" value="$(arg fcu_protocol)" />
    <arg name="respawn_mavros" default="$(arg respawn_mavros)" />
</include>
</launch>

fcu_url

fcu_url is the address of flight controller (FCU). If you use serial port such as USB connection for FCU connection, the address of FCU will be like /dev/ttyACM0. The address slightly changes depending on the environment. The number after colon is baudrate.

In case of simulation, we use UDP for communication. Set fcu_url like the following when using UDP.

udp://[bind_host][:port]@[remote_host][:port]

  • bind_host defines IP address of FCU. By default, it is INADDR_ANY(0.0.0.0) and mavros receives data from any IP adress.

  • port is listening port of ROS node and it is 14540 by default.

  • remote_host is IP address of remote PC. In case of simulation, set localhost or 127.0.0.1.

  • The next port is the port of FCU. It is 14557 by default.

fcu_url will be like the following by assigning the values above.

udp://:14540@127.0.0.1:14557

For port settings, see ROS with Gazebo Simulation - PX4 Developer Guide. See mavros - ROS Wiki for the detailes of fcu_url.
